Boost 8m²

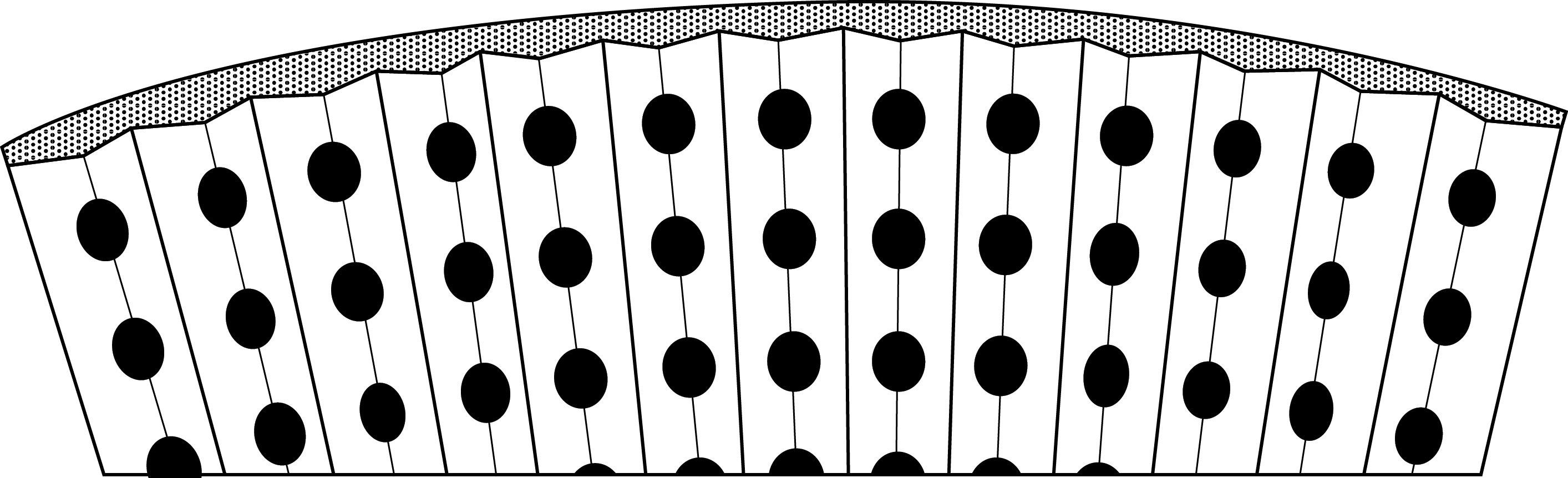

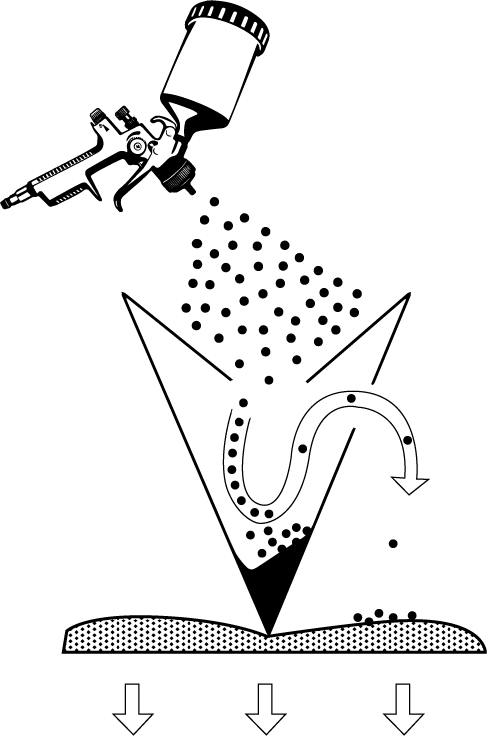

EcoFilters Boost is the combination of a pleated cardboard filter and a polyester layer. It is designed to boost the filter’s efficiency
especially with resins and polyester bicomponants.

Performances

Load Capacity

Lacquers
[13kg/m 2]
High Solids
[20kg/m 2]
Polyester
[20kg/m 2]

Efficiency

Lacquers
[97.0%]
High Solids
[98.5%]
Polyester
[99.2%]

Recommended Air Velocity: 0.5 - 1.0 m/s

Preasure Drop: 21 pa at 0.5 m/s; 32 pa at 0.75m/s; 42 pa at 1.0 m/s

Max Recommended Preasure Drop: 128 pa (up to 256 pa)

H75 cm

280 pleats

H90 cm

240 pleats

H100 cm

210 pleats

 BrownEF721EF921EF121
WhiteEF723EF923EF123
